Ruhof CS/SPD Pull Through

Ordering Details :



Cat. No. 345PT1
Cat. No. 345PT2
Cat. No. 345PT5
Cat. No. 345PT8
Cat. No. 345PT12
Cat. No. 345PT15

MICRO: 1.2mm (1-1.2mm) - Purple
MINI: 2.6mm (1.4-2.6mm) - Green
5mm (3-5mm) - White
8mm (6-8mm) - Green
12mm (9-12mm) - Blue
15mm (13-15mm) - Yellow







Single Use Cannulated Instrument Cleaning Device

The CS/SPD PULL THRU™ is an instrument cleaning device, which can be effectively used to clean the hard-to-reach narrow lumen channels of laparoscopic and cannulated instruments in a single pass. The CS/SPD PULL THRU™ is designed to clean instruments with lumens from 1mm to 15mm. Use with Ruhof’s multi-tiered enzymatic detergents for more effective cleaning.

The unique four wiper design of the CS/SPD PULL THRU™ provides a complete circumferential seal in the lumen channel, there by removing almost all residue in a single pass.

The 360° seal creates a vacuum which draws detergent through the lumen removing residue from crevices or other areas of minor damage in the lumen. The vacuum also ensures the lumen is completely filled with detergent to attack and remove bioburden.

Features and Benefits

  • Product range effectively cleans lumen channels from 1mm-15mm with a single pass.
  • Unique wiper element design provides a complete circumferential seal in the lumen with a piston like action thereby removing almost all residue.
  • Reduces the time required to manually clean cannulated instruments.
  • Removes the residue bristle brushes leave behind.
  • Any residue left, is left as a uniform film. Detergents can attack and remove this bio burden more effectively.
  • CS/SPD PULL THRU™ action is consistent every time, which reduces any variation in cleaning method between users.
  • Disposable/single use device, which removes the need for the complicated and expensive cleaning of traditional brushes.
  • Significantly improves cleaning efficiency when compared to traditional brushes.
  • Wipers are constructed of soft plastic, non-abrasive material and will not harm the lumen walls.

INSTRUCTIONS FOR USE
Working Lumen: 1mm-15mm ID
Working Length: approximately 65cm

  1. Be sure to use the CS/SPD PULL THRU™ on wet lumen channels, (preferably submerge the instrument in detergent bath).
  2. Open the pouch and remove the CS/SPD PULL THRU™ lumen cleaning device from the package.
  3. Check that you are using the correct size CS/SPD PULL THRU™ by inserting the CS/SPD PULL THRU™ wipers into all the cannula ends of the instrument to be cleaned; if too tight or too loose check channel inner diameter against instrument manufacturer’s instructions.
  4. Insert the short tip end of the CS/SPD PULL THRU™ into the smallest ID cannula proximal end of the instrument to be cleaned, (pull through from narrow to large cannula ID, if applicable). Advance the device through the lumen and exit at the distal end, slowly pulling the device completely through.
  5. Check for soil on wipers 3 and 4. If there is soil, rinse and repeat step 4.
  6. Dispose of device after use.
Ruhof CS/SPD Pull Through Ruhof CS/SPD Pull Through

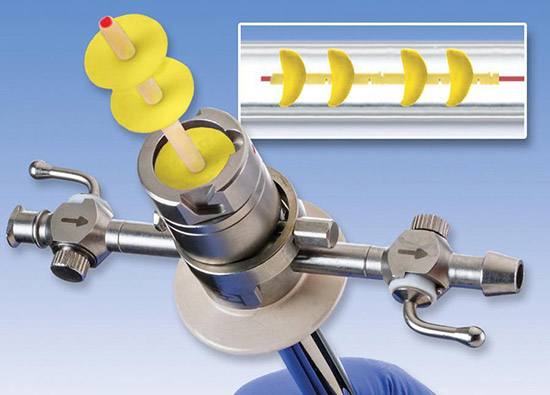

The multiple wiper design of the CS/SPD PULL THRU™ provides a complete circumferential seal in the lumen channel, thereby removing almost all residue in a single pass.


Ruhof CS/SPD Pull Through
The CS/SPD PULL THRU™s 65cm flexible wand allows for easy access through all lumen channels.
Ruhof Endozime SLR Endoscopy Bedside Care Kit 500ml

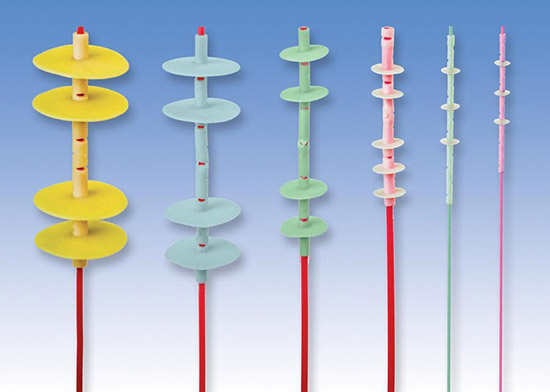

The CS/SPD PULL THRU™ is available in 6 sizes, each is colour coded to clearly indicate the wiper circumference.
